Your Postition:Home >> Products >> T-series

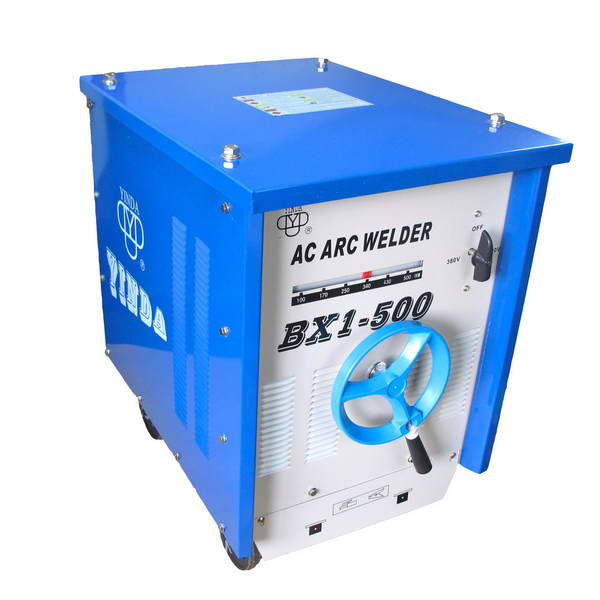

BX1-250 BX1-315 BX1-500

Features:
 High quality and stable performance
 Applicable for welding low-carbon steel, high-tensile steel, medium-carton steel, low-alloy steel
 With high quality silicon steel plate.
 With current stepless adjusting output, stable welding current leads to arc low magnetic blow.
 Vehicle design with wheels, novel construction design.
 Adapting 2-8mm AC acidic welding rod.

Use condition:
 surrounding temperature: -10℃~40℃
 Altitude: <1000m
 The content of dust, acid, corrosive gas in the air should be in normal value
 Don’t use long time in salty air
 Voltage waving of power supply cannot over 10%
 Environmental wind power less than 1.5m/s
 Don’t’ use in the rain.

PARAMETERS / MODEL BX1-250 BX1-315 BX1-400 BX1-500 BX1-630
RATED INPUT VOLTAGE (V) 380 380 380 380 380
RATED FREQUENCY (HZ) 50 /60 50 /60 50 /60 50 /60 50 /60
NO-LOAD VOLTAGE (V) 66 76 76 76 76
RATED CURRENT (A) 250 315 400 500 630
CURRENT ADJUSTABLE RANGE (A) 50-250 60-315 80-400 100-500 120-630
RATED DUTY CYCLE (%) 20 35 35 35 35
WELDING ROD DIA (MM) 2.5-3.2 2.5-4 2.5-4 2.5-4 2.5-4
RATED INPUT CAPACITY (KVA) 16 24 30.4 38 48
INSULATION CLASS F F F F F
COOLING METHOD
DIMENTION 654*405*635 670*434*725 700*454*745 740*494*805 740*494*805
