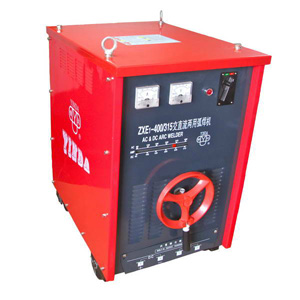

ZXE1-400/315

INTRODUCTION:
The ZXE1 series AC/DC double-duty arc welder can use AC or DC type through an AC/DC switch. It uses movable iron core. The circuit is with bridge type rectify and current filter. It can use acidic rod for welding common steel (angle steel, round steel, channel steel, steel plate) and low alloy steel, also alkaline rod for welding critical low carbon steel structure and common medium carbon steel, stainless steel and cast iron etc. it used widely in the industry of construction, metallurgy, oil, chemical, shipbuilding and machinery.

Use condition:
 surrounding temperature: -10℃~40℃
 Altitude: <1000m
 The content of dust, acid, corrosive gas in the air should be in normal value
 Don’t use long time in salty air
 Voltage waving of power supply cannot over 10%
 Environmental wind power less than 1.5m/s
 Don’t’ use in the rain.

Features:
 High quality and stable performance
 Applicable for welding common steel, low alloy steel, critical low carbon steel structure and common medium carbon steel, stainless steel and cast iron etc.
 AC and DC both available
 Stepless current adjusting, air cooling.
 Vehicle design with wheels, novel construction design.
 Suitable for many kinds of welding rod.

Model ZXE1-315 ZXE1-400 ZXE1-500
Power voltage V 380 380 380
Frequency Hz 50 50 50
 AC rated welding current A 315 400 500
DC rated welding current A 270 350 420
AC current adjusting range A 60-315 75-400 95-500
DC current adjusting range A 50-270 60-350 80-420
Rated Duty Cycle % 35 35 35
No-load Voltage KVA 70 72 70
Rated input capacity KVA 22.8 30 38
Rank of insulation (grade) F F F
Dimension mm 670X434X690 700X454X840 740X494X920
Weight kg 131 149 183
